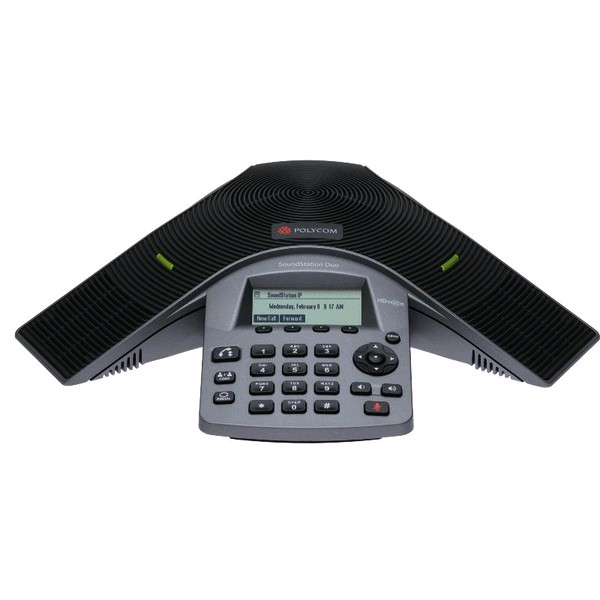

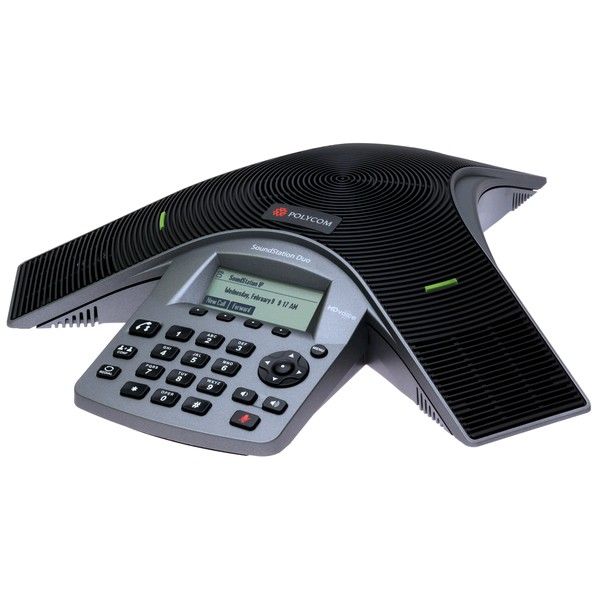

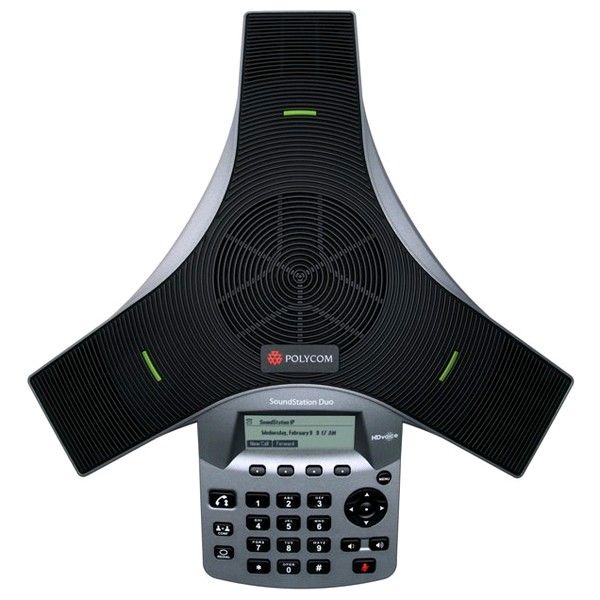

Polycom Soundstation Duo

Descrição produto

Polycom Soundtstation Duo

Telefone de conferência hibrida, IP e analógica

Conexão analogica e IP:

Totalmente hibrida, pode escolher utilizar a Soundstation Duo  no modo analógico ou no modo IP (SIP).

Interface de utilizador:

Com um ecrã LCD iluminado (248 x 68 pixeis) pode aceder a todas as funcionalidades do telefone, tais como: transferencia de chamadas, chamadas perdidas, renumeração, conferência...

Tecnologia HD voice:

Com a tecnologia sonora exclusiva da Polycom, a Soundstation Duo oferece-lhe uma qualidade de voz incrivel. A Polycom Soundstation Duo ajusta automáticamente o volume e a sensibilidade do microfone conforme os participantes.
Devido ao HD Voice e ao audio Full Duplex cancela o eco e anula as interferençias dos telemóveis e dos aparelhos wireless.

Características técnicas:

Power
• IEEE 802.3af Power over Ethernet

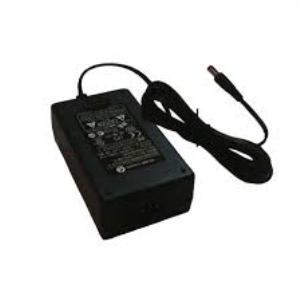

• Optional external universal AC power supply: 100-240V, 24V, 0.5A, 2.5mm DC plug

Display
• Size (pixels): 248 x 68 (W x H)
• White LED backlight with custom intensity control

Keypad
• Standard 12-key keypad
• Context-dependent soft keys: 4
• On-hook/Off-hook, conference, redial, mute, volume up/down, menu, navigation keys

Audio Features
• 3 cardioid microphones: 200-7000 Hz
• Loudspeaker frequency response: 220-7000 Hz
• 10ft (3m) microphone pickup
• Volume: Adjustable to 86 dB at 0.5 meter peak volume
• Individual volume settings with visual feedback for each audio path
• Voice activity detection
• Comfort noise fill
• DTMF tone generation/DTMF event RTP payload
• Low-delay audio packet transmission
• Adaptive jitter buffers
• Packet loss concealment
• Acoustic echo cancellation
• Background noise suppression
• Supported Codecs:
- G.711 (A-law and Mu-law)
- G.729a (Annex B)
- G.722
- iLBC 13.33 and 15.2kbps

SIP Call Handling Features
• Call hold*
• Call transfer, divert (forward) and pickup
• Distinctive incoming call treatment/call waiting
• Advanced Local three-way conferencing (conference, join, split, hold, resume)
• One-touch speed dial, redial*
• Remote missed call notification
• Automatic off-hook call placement
• SIP URI dialing
• Do not disturb function
• Shared call/bridged line appearance
• Busy Lamp Field (BLF)
• Multicast Group Paging and Push-to-Talk

Other Features
• Automated failover (SIP to PSTN)
• SIP Server Redundancy
• Time and date display/call timer
• User-configurable contact directory and call history (missed, placed, and received)
• Corporate Directory (LDAP) support
• User selectable ringer tones
• Wave file support for call progress tones
• Unicode UTF-8 character support
• Multilingual user interface encompassing Simplified Chinese, Traditional Chinese Danish, Dutch, English (Canada /US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish
• Called, connected party information
• Support for multiple Caller ID standards**:
- Bellcore Type 1
- ETSI
- DTMF

Interfaces
• Ethernet 10/100 Base-T
• Two-wire RJ-11 analog PBX or public switched telephone network interface
• 2.5mm connection port***

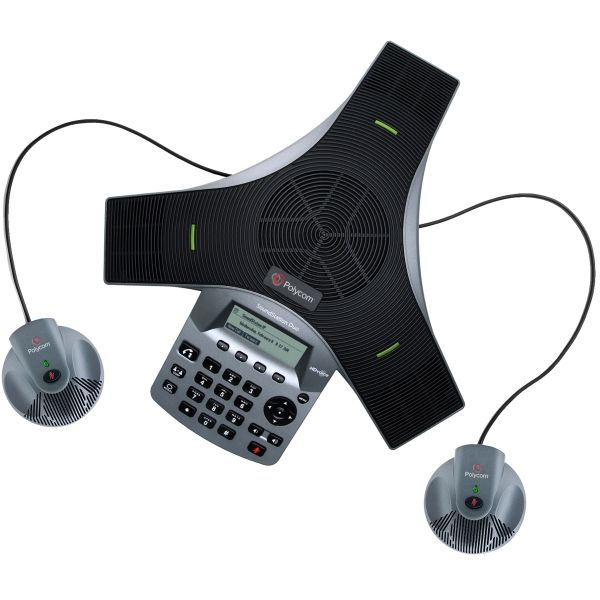

• 2 RJ9 expansion microphone ports

Network and Provisioning
• IP Address Configuration: DHCP and Static IP
• Time synchronization with SNTP server
• FTP/TFTP/FTPS/HTTP/HTTPS server-based central provisioning for mass deployments. Provisioning server redundancy supported.
• Web portal for individual unit configuration and online software upgrade
• QoS Support -- IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and DSCP
• Network Address Translation (NAT) support - static
• RTCP support (RFC 1889)
• Configuration import/export
• Local digit map (dialing plan)
• Hardware diagnostics
• Status and statistics
• Reset to factory settings
